60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test

60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test
60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test 60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test 60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test 60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test

Büyük resim :  60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test

Ürün ayrıntıları:
Place of Origin: Guangdong, China (Mainland)
Marka adı: Haida
Sertifika: ISO,CE
Model Number: 60091-HD
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 Set
Fiyat: Anlaşılabilir
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida

60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test

Açıklama
Vurgulamak:

Ceramic Comprehensive Tester

,

Ceramic Comprehensive Tester For Flatness

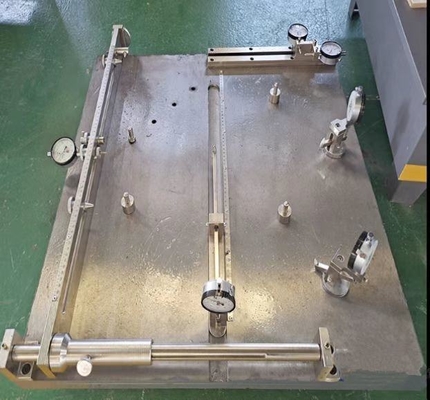

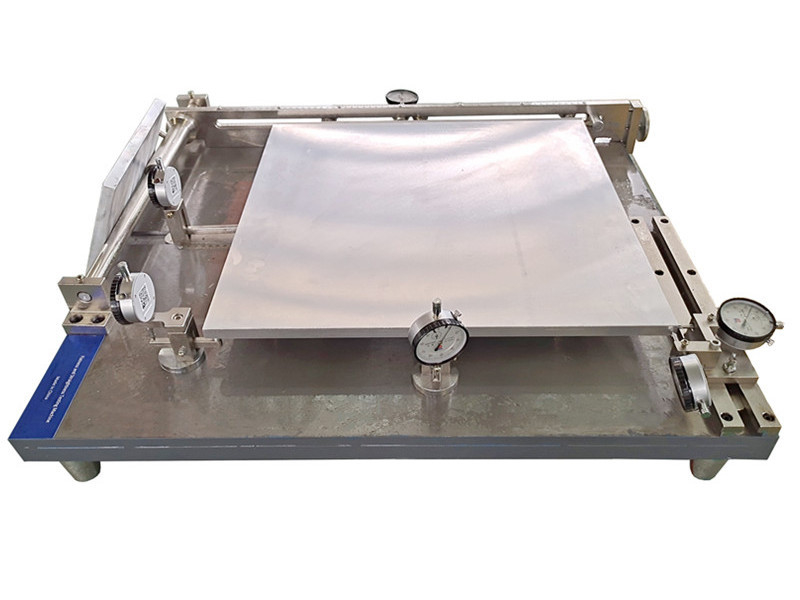

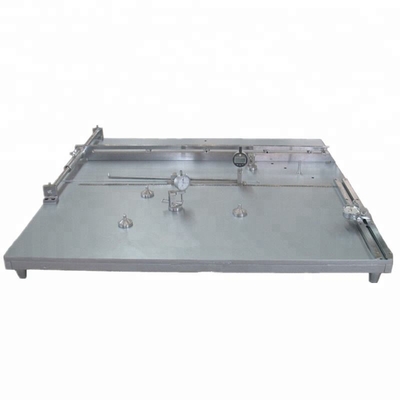

60091-HD Ceramic Comprehensive Tester (For flatness, straightness and straightness test)

This instrument is suitable for measuring the size and shape characteristics of various wall and floor tiles. Its measured parameters include several indicators such as the straightness, perpendicularity, length, and flatness (center curvature, edge curvature, and curvature) of the tiles. These six types of data can be quickly and accurately measured in one placement during the measurement. This product complies with the requirements of GB/T3810.2-2016, ISO 10545-2-1995, EN98-84/BS6431, and ASTM C485-83.

60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test 0
  • Measurement accuracy: ±0.1mm;
  • Measurement range: adjustable from 100*100~ 600*600mm, 100*100~800*800mm, and 100*100~1000*1000mm for optional
  • Needs to be equipped with a standard board for testing, and the size of the standard board is one-to-one with the size of the test sample; Standard plates (made of aluminum alloy) for ceramic tile testing, such as 1000*1000, 800*800, 600*600 (mm), etc., can be customized to various specifications according to customer requirements. The accuracy of the above standard board is better than 0.1mm (optional)
  • Using linear bearings as guide rails makes operation more convenient.
60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test 1 60091-HD Ceramic Comprehensive Tester For Flatness , Straightness And Straightness Test 2
