Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine
Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine

Büyük resim :  Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine

Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin (Ankarada)
Marka adı: Haida
Sertifika: ISO,CE
Model numarası: HD-F731
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Tahta Sandık İhracatı
Teslim süresi: Sipariş Onaylandıktan Sonra 15 Gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 30 Set Haida

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine

Açıklama
Çerçeve: Travers elemanlı ve taban plakalı 1 çerçeve 1200mm ×1200 mm , 12mm kalınlık, galvanizli çelik Rotasyon test ekseni: Döner düğmenin dönüşü için 1 elektromotor test ekseni, konum kontrollü, dönüş açısı +/- 360°
Pnömatik test ekseni: Koltuk için 1 pnömatik test ekseni, yük kontrollü, konum çapı 80 mm, strok 500 mm Yük: Load Cell 122 kg (270 lb.) . Yük Hücresi 122 kg (270 lb.) . Load is transmitted ver
Vurgulamak:

270lb Office Chair Durability Test Machine

,

Electrical Office Chair Swivel Durability

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine


EQUIPMENT DESCRIPTION

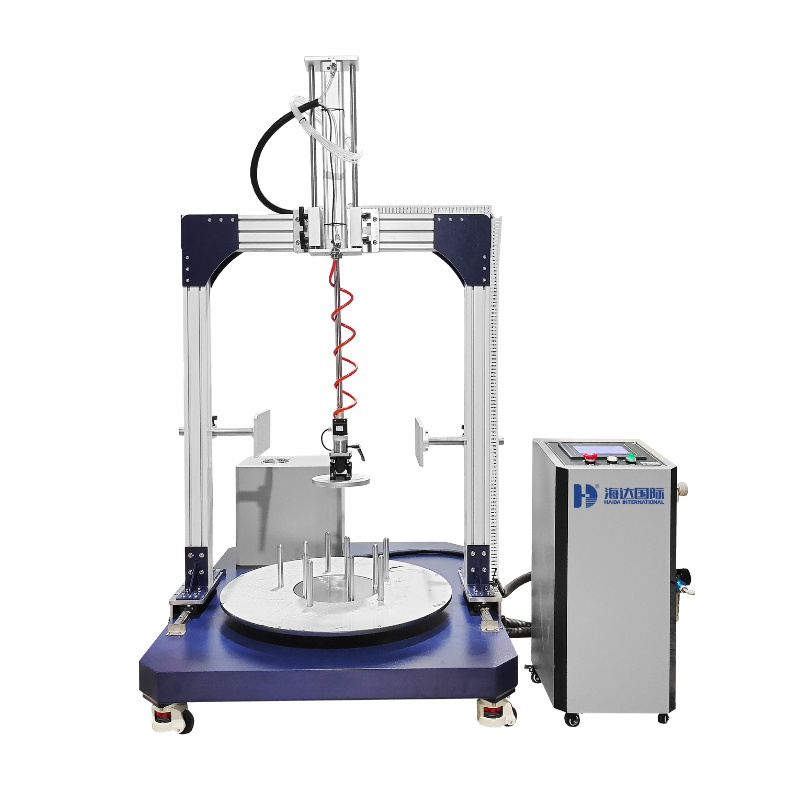

Test rig for rotation testing on seating furniture according to BIFMA X5.1, load controlled with loading pad. The pneumatic test axis operates from PLC.

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine 0

GENERL SPECIFICATIONS

Machine Dimensions: (W x D x H) 1680*890*1840mm

Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)

Gross Weight: 400kg


STANDARD FEATURES

Framework 1 framework with traverse member and base plat 1200mm ×1200 mm , 12mm thick, galvanized steel
Rotation test axis 1 electromotive test axis for the rotation of the turning knob, position-controlled, rotation angle +/- 360°
Pneumatic test axis 1 pneumatic test axis for seat, load controlled, position diameter 80mm, stroke 500mm

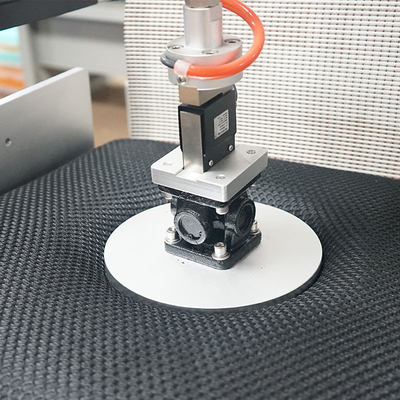

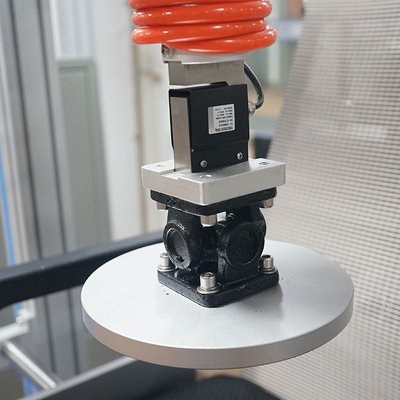

Load Load Cell 122 kg (270 lb.) . Load is transmitted vertically to the seat with lateral adjusting range
Limit Control Operating pressure and cylinder limit switch control
Emergency Button 1 emergency button
Number and Cycles Can be set by PLC ( 0- 99,999)
Accessories (Optional) 1 load pad diameter 200mm DIN EN 1335

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine 1


APPLICATION STANDARDS:

BIFMA X5.1-2017


Reference Doc: BIFMA X5.1-2017 Swivel Test


Chair Test Step

  1. The chair shall be restrained on a platform. Either the seat or the platform shall be restrained from rotation.
  2. If the seat adjustable, set it to the maximum seat position. Set all other adjustable features to the normal use condition.
  3. A 122 kg (270 lb.) load shall be placed on the seat such that the centre of gravity of the load is 51 to 64 mm (2 to 2.5 in) forward of the centerline of the rotational axis as shown in Picture 1.
  4. The cycling device shall be adjusted to rotate the lesser of the following: the available range of rotation or 360 degrees ± 10 degrees. If the available range of rotation is less than 360 degrees, the rotation of the test machine shall be adjusted such that the swivel mechanism touches but does not override the stops. The rotation may be either bidirectional or unidirectional.
  5. For chairs that swivel 360 degrees, a cycle is one full rotation. For chairs that swivel less than 360 degrees, one cycle is rotating from one stop to the other stop.
  6. The seat or platform shall rotate for 60,000 cycles at a rate between 5 and 15 rotations per minute.
  7. If the seat height is adjustable set the height to its lowest position.

For all chairs, continue the test for an additional 60,000 cycles to a total of 120,000 cycles.

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine 2

Electrical BIFMA X5.1 270lb Electrical Office Chair Swivel Durability Test Machine 3
