Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing

Sertifika
Çin Hai Da Labtester Sertifikalar
Çin Hai Da Labtester Sertifikalar
Müşteri yorumları
Evet, geçen hafta makineyi aldık. Bu Makine çok hoştu ve satış sonrası serilerine teşekkür etti, çok profesyoneldi.

—— Peter Maas

Şirket adına fabrikalarınızı ve şirketlerinizi ziyaret etmek için, teknik personel çok profesyonel ve sabırlıdır, sizinle tekrar işbirliği yapmaktan mutluluk duyacağımı düşünüyorum.

—— Steve Hubbard

Ben sohbet şimdi

Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing

Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing
Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing

Büyük resim :  Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Haida
Sertifika: CE,,ISO
Model numarası: 9003-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Her set reçine lifi ve PP filmi ile korunmuş, daha sonra Operasyon Adamı ile güçlü ahşap kılıfta yer
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing

Açıklama
Başvuru: Pil Testi Kablolama yöntemi: AC üç fazlı dört telli
Görüntülemek: LCD Mevcut Aralık: 0-10A
Çözünürlük: 0.001V/0.001A Kablolama yöntemi: AC 220V
Kesinlik: ±% 0.1 Güç kaynağı: AC
Vurgulamak:

Standard Charge Discharge Battery Testing System

,

High Definition Charge Discharge Battery Testing System

  • Detailed Product Information

    • Place of Origin: China

    • Brand Name: Kingpo

    • Certification: ISO9001, CE

    • Model Number: 8280

    • Weight: 2 kg

    • Dimensions: 290×270×60 mm (L×W×H)

    • Power Supply: 220 VAC, 50 Hz

    • Compliance Standards: IEC 60065

    • Channel Options: 0° or 90° phase shift

    • Reference Frequency: 1000 Hz

    • Application: TV test equipment, audio signal testing

    Product Overview

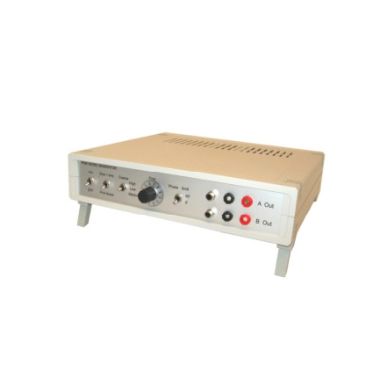

    This Pink Noise Generator is designed to meet the pink noise specifications outlined in IEC 60065 (Clauses 4.2 and 4.3) and IEC 62368-1 (Annex E). It is ideal for evaluating tone frequency amplifiers, particularly when dual-channel or 90° phase-shift output is required.

    Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing 0
  •

    Key Features

    • Output options: pink noise or 1000 Hz sine wave (selectable, not simultaneous)

    • Dual output channels with configurable phase shift (0° or 90°)

    • Adjustable output voltage with fine-tuning capability

    • Multiple connector types: RCA and 4 mm banana jacks

    • Includes test cables: RCA and 3.5 mm phono connectors

    • Complies with IEC 60065 Annex C, Figure C1 (IEC 60268)

    Output Voltage Ranges



    Level Sine Wave (1 kHz) Filtered Pink Noise (RMS)
    Low 0–100 mV / 1 kΩ 0–35 mV / 1 kΩ
    Medium 0–1 V / 1 kΩ 0–350 mV / 1 kΩ
    High 0–5 V / 1 kΩ 0–1.7 V / 1 kΩ
  • Standard and High-Definition Video Formats Charge / Discharge Battery Testing System for TV Testing 1
