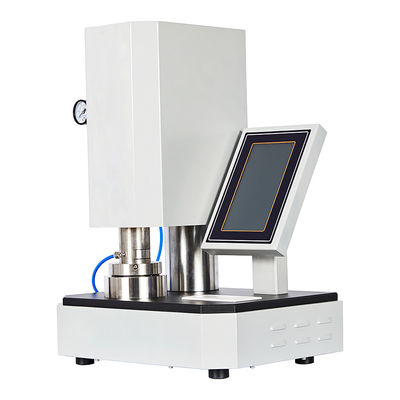

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Sertifika
Çin Hai Da Labtester Sertifikalar
Çin Hai Da Labtester Sertifikalar
Müşteri yorumları
Evet, geçen hafta makineyi aldık. Bu Makine çok hoştu ve satış sonrası serilerine teşekkür etti, çok profesyoneldi.

—— Peter Maas

Şirket adına fabrikalarınızı ve şirketlerinizi ziyaret etmek için, teknik personel çok profesyonel ve sabırlıdır, sizinle tekrar işbirliği yapmaktan mutluluk duyacağımı düşünüyorum.

—— Steve Hubbard

Ben sohbet şimdi

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Büyük resim :  EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Haida
Sertifika: CE,,ISO
Model numarası: 5095-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Her set reçine lifi ve PP filmi ile korunmuş, daha sonra Operasyon Adamı ile güçlü ahşap kılıfta yer
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Açıklama
Etkili işyeri boyutu: 280*170*120 mm Sıcaklık doğruluğu: ± 0,2 °C
Sarkaç açısı: 150° Kapasite: 1-1.5,2-2.5/3-3.5t/s
Yerleştirme Kuvveti: 0~50kg Zamanlama modu: Karşı-up, karşı aşağı
Tasarım Standartları: HS 80 ± 5 Test hızı: 5 ~ 60 Döngü/Dakika
çarpma açısı: 90 derece Sarkaç Uzunluğu: 200 mm
Veri atma: İşlemci Soyma Açısı: 90 °
Kafa Keskin Ölçme: 35 °, 30 ° fırın boyutu: Φ45mm*350mm

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 0

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 1



DESCRIPTION

Thickness tester is used for thickness determination of film.

DESIGN STANDATD

GB/T 6672,ISO 4593

PRODUCT FEATURES

1. One-click test, easy to operate.

2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.

3. Automatic measurement, statistics, print test results, and has a data saving function

TECHNICAL PARAMETERS

Item

Description

Display

7-inch touch screen display

Measure range

(0~2)mm

Resolution

0.0001mm

Indication error

±1um

Repeatability

±1um

Measuring parallelism

0.002mm

Contact area

50 mm2

Contact pressure

film (17.5 ± 1) kPa

Probe descent rate

0.5~10mm/s(adjustable)

Data storage

50 times test data

Result Output

USB flash drive data export

Print

Thermal printer

l Communication interface

USB, WIFI(2.4G)

Dimension

365x255x440 mm(L*W*H)

Net weight

27Kg




Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 2 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 3 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 4
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
