5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection
5083-HD Leak Test Machine with 300mm Max Width & 40g Injection 5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Büyük resim :  5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Haida
Sertifika: CE,,ISO
Model numarası: 5083-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Her set reçine lifi ve PP filmi ile korunmuş, daha sonra Operasyon Adamı ile güçlü ahşap kılıfta yer
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

5083-HD Leak Test Machine with 300mm Max Width & 40g Injection

Açıklama
Ölçüm açısı: 20 °/ 60 °/ 85 ° Kesme hızı: 100 ~ 3000mm/dk ayarlanabilir
Maksimum işleme genişliği: 300mm Vida vuruşu: 90 mm
Zamanlama doğruluğu: 0.1s Maksimum enjeksiyon hacmi: 40g
Silindir: Çap9.5504 ± 0.0076mm Ağırlık: Belirli bir modele bağlı.
Boru çapı aralığı: Φ2-φ2000mm Soyma Açısı: 90 °
Zamanlama aralığı: 0-10000H Enjeksiyon kapasitesi: 40*65 cm³
Vurgulamak:

5083-HD leak test machine

,

leak test machine 300mm width

,

plastic test equipment with injection

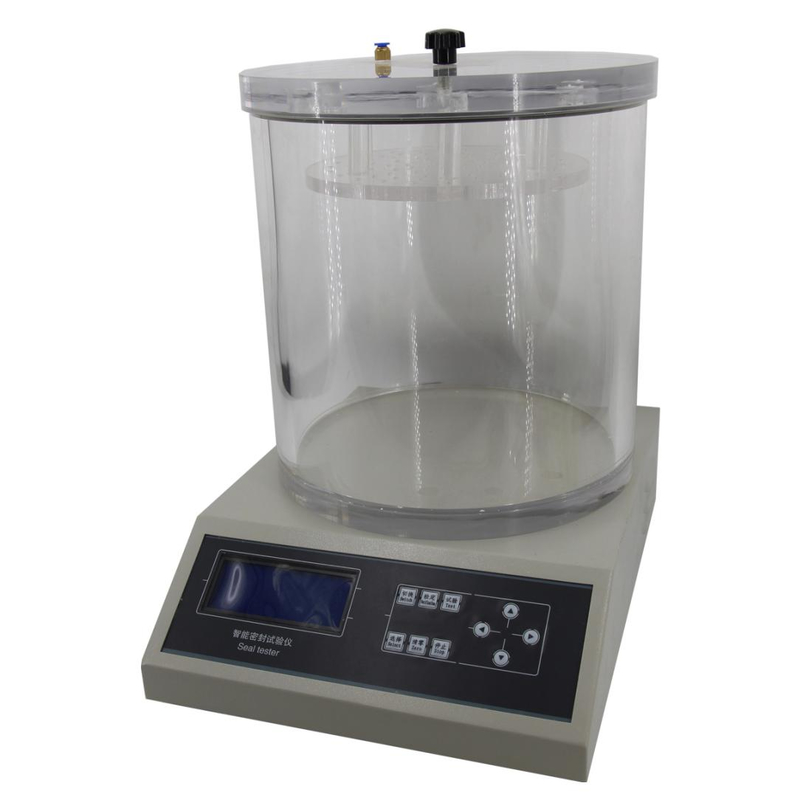

5083-HD Leak Test Machine (Vacuum Tester)
5083-HD Leak Test Machine with 300mm Max Width & 40g Injection 0
Product Description
This leak test machine is suitable for sealing tests of bottles, pipes, cans, and boxes in various industries including food, pharmaceutical, medical equipment, daily chemical, automotive, electronic components, and stationery. It can also evaluate sealing performance after impact tests and pressure resistance tests.
Design Standard
ASTM D3078, GB/T 15171
Test Principle
  • By evacuating the vacuum chamber, the sample immersed in water generates a pressure difference between inside and outside, allowing observation of gas escape to determine sealing performance
  • Through vacuum chamber evacuation, the sample develops internal/external pressure difference, enabling observation of sample expansion and shape recovery after vacuum release to assess sealing capability
Technical Parameters
Item Description
Vacuum Density -90-0kPa
Accuracy ± 0.1kPa
Pressure speed 1m/s
Available Vacuum room Size Standard: Φ270mm*210mm(H) (other sizes available)
Air pressure 0.7MPa (user-provided)
Gas Source interface Φ6PU pipe
Control ways Microcomputer control, automatic test
Display ways LCD display
Power AC 220V 50Hz (AC110V 50HZ)

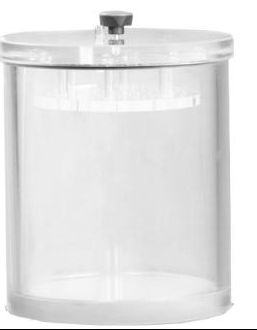

Standard Configuration Main unit, experimental sealed barrels, power cords
Net Weight 16kg
Dimensions (L*W*H) 420*320*520mm
About Haida International Equipment Co., Ltd
Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida International Equipment Co., Ltd specializes in the production and R&D of various material physical properties testing equipment. We maintain our own independent research and development center and operate four testing equipment production lines: textile, footwear, leather, and mask. Since 2006, our testing equipment has been in production and successfully entered international markets.
Why Choose Haida?
  • Design & Production: Solution consultation for each order, recommendation of most cost-effective machines, and R&D for special-designed models
  • Shipping & Delivery: One-stop service from production to door delivery, including installation, training, and technical support
  • Warranty: 1 year warranty with lifetime technology support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: How about your warranty?
A: Our standard warranty is one year. During this period, we provide technical support and replacement parts as needed. For complex issues, our engineers may visit your location for service.
Q: What is the order process?
A: Our process includes: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Q: Can we visit your factory before ordering?
A: Yes, we warmly welcome visits and can assist with hotel arrangements and airport transfers.
Q: Do you accept customization service?
A: Absolutely. We offer both standard machines and customized solutions tailored to your specific requirements.
