Ürün ayrıntıları:
|
Kullanım: | Kalite Kontrolü ve Testleri | Transformatör kapasitesi: | 1000VA |
---|---|---|---|
Darbe hızı: | 3.4m/s | Koşu yolu: | Uzunluk 100 mm |
Harici boyut: | 900*500*800 (W*D*H) | çarpma açısı: | 90 derece |
Sıcaklık test cihazı: | Oda sıcaklığı ila 200°C | Boyut: | 650mm×400×830mm |
Zamanlama aralığı: | 3 dakika (keyfi olarak ayarlanabilir) | Akım Ölçüm Aralığı: | 10pA~1mA |
Fikstür yükü: | 2.5N | Ozonla Üretilen Mod: | Ozon jeneratörü veya UV absorpsiyon yöntemi |
yatay: | 500mm * 250mm * 500m | Numune kalınlığı aralığı: | 0 ~ 60 mm |
numune boyutu: | 16 mm, 6-15 mm (D) | Gözlemci: | CIE 10° Standart gözlemci |
Spesifikasyon: | 20-88HRA, 20-100HRB, 20-70HRC | Basınç çözünürlüğü: | 0.001MPA (0.01Bar veya 1psi) |
Test modu A: | Oda sıcaklığı | Ekran: | Dijital |
Test hızı: | Ayarlanabilir | top ağırlığı: | 5kg |
Dış boyut: | 95x150x105cm | Delme Darbesi: | 25 mm |
Sıcaklık: | ± 2 ℃ | Doğruluğu kontrol etmek: | ±0.2°C |
Vurgulamak: | Thermal Conductivity Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester |

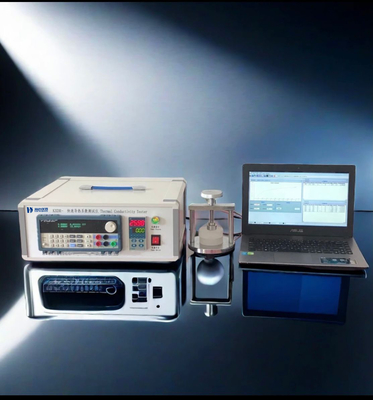

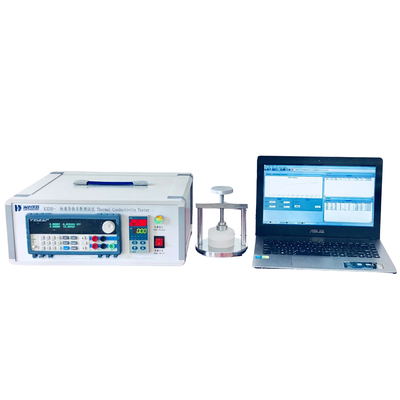

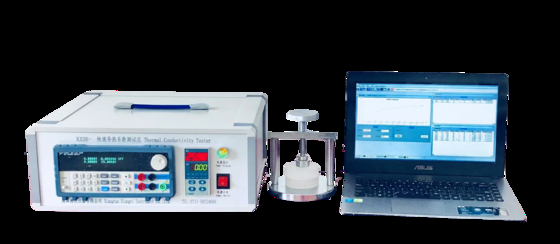

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
Technical Parameters
Item | Parameters |
Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
Measurement relative error | ≤3% |
Repeatability error | ≤3% |
Temperature resolution | 0.01℃ |
Measuring time | 2~180 seconds |
Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
Control mode | By computer and software |
Machine dimension | (L*W*H)380*400*165mm |
Machine weight | Approx. 5KG |
Power | AC 220V±10%, 50/60 Hz, 200W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ
Q: How about your warranty?
Q: What is the order process?
Q: Can we visit your factory before order?
Q: Do you accept customization service?
