EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER

EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER
EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER

Büyük resim :  EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Haida
Sertifika: CE,,ISO
Model numarası: 5079-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Her set reçine lifi ve PP filmi ile korunmuş, daha sonra Operasyon Adamı ile güçlü ahşap kılıfta yer
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER

Açıklama
çarpma açısı: 90 derece Zaman çözünürlüğü: 1s
Tasarım Standartları: ¢ 84mm × 45mm Ölçüm doğruluğu: ±% 3
Test açısı: 20 °, 30 °, 40 ° Malzeme Ses hızı: 1000-9999m/s
Silindir hızı: 40 ± 1r. P . M Enjeksiyon kapasitesi: 40*65 cm³
Zamanlama aralığı: 3 dakika (keyfi olarak ayarlanabilir) Çalışma boyutu: Çap 160*44 (mm) merkez yüksekliği 214mm
Sabit sıcaklık: 50 ℃ ± 0.5 ℃ ve 100 ℃ ± 0.5 ℃ Soyma Açısı: 90 °
Boyut: 550x440x690 mm Dış boyut: (L × W × H) 500 × 200 × 300 mm
Tip: tek çekiç eli

EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER
EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER 0

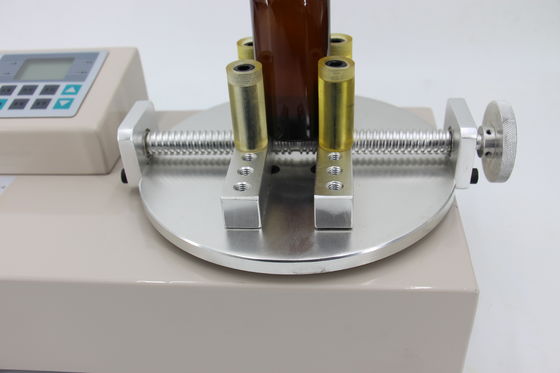

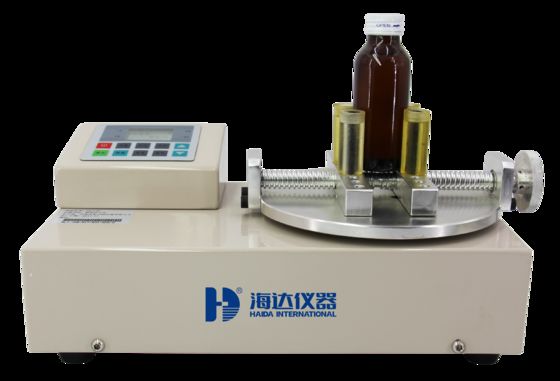

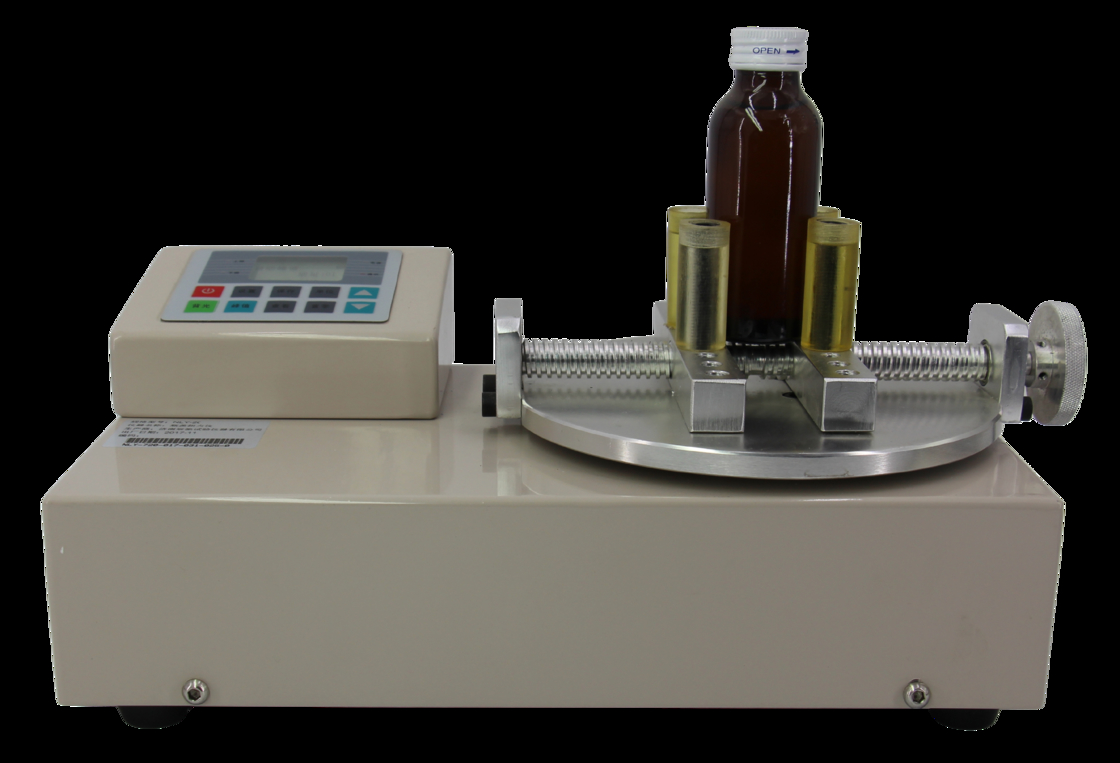

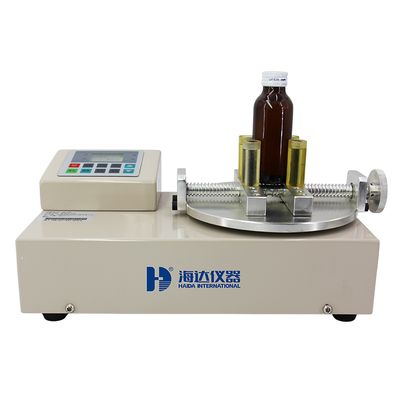

***Picture for reference

PRODUCT DESCRIPTION

Bottle Capping Torque Tester is suitable for the pharmaceutical, food and beverage, filling industry, etc., such as bottle packaging products, hose packaging products, cap closure of the nozzle packaging products, accurate torque testing of opening.

MAIN FEATURE
  1. Microcomputer control, LCD liquid crystal display;
  2. The test data is continuously collected, and the peak value is automatically maintained;
  3. Dual mode design of locking force and opening force;
  4. The standard unit of test results does not require manual conversion;
  5. Test times can be set, data deletion, statistics function;
  6. Power-down memory of test parameters;
  7. Automatic reset, intelligent fault prompt, overload protection;
  8. Small size, convenient operation, reliable performance, fast test;
  9. N.m, kg.cm, lb.in are converted mutually;
TECHNICAL PARAMETERS
Item Description
Measuring range 0~99ib.in
Resolution 0.001 Nm
Accuracy ±0.5%
Display mode Touch screen ; LCD display
Unit N.m; kg.cm; ib.in; N.cm
Clamping range Ф25mm~Ф170mm (Diameter)
Power supply 5V rechargeable battery
AC220V 50HZ power adapter
Data output method Micro printer, optional PC output
Save quantity 1~99
Machine size 330*200*200mm
Weight 15 KG
Design standard GB/T 17876,ASTM D 2063, ASTM D 3198, ASTM D 3474
About us

Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
