Ürün ayrıntıları:
|
İsim: | Kağıt Kupa Tüp Bırakma Mukavemeti Test Cihazı, Kağıt Test Aleti Kağıt GSM Test Cihazı/ Patlama Mukav | Görüntülemek: | LCD, dijital ekran |
---|---|---|---|
Özellik: | Kullanımı kolay | Çalışma yöntemi: | Otomatik |
Ürün türü: | Test Aletleri | Koruma cihazı: | İndüksiyon tipi koruma cihazı |
Kontrol: | PLC kontrolü | Güç: | Elektronik, 220V/50Hz, AC220V, topraklanmış, güç kaynağı güvenilir olmalı |
Kullanım: | Kağıt Test Enstrümanı, Evrensel Test Makinesi, Kağıt/Plastik Malzeme Çekme Kuvvet Test Aleti, Kuvvet | Ürün adı: | Laboratuvar kağıt havası geçirgenlik test cihazı, paket damla etkisi güvenilirlik test cihazı / sıfı |
Garanti: | 12 ay, 1 yıl, 2 yıl, 1-2 yıl, bir yıl | Ağırlık: | 70 kg, 91 kg, yaklaşık 145 kg, 75kg, 64kg |
Güç kaynağı: | 6A, AC220V, 220V 50Hz, 50-60Hz, 1 Çap | Başvuru: | vb, tüp sıkıştırma mukavemeti test cihazı, plaka, kauçuk, çubuk |
Çözünürlük: | 1 / 20000,1 / 50000,0.1n, 000,1mn | Kapasite: | 200.500.1000kg, 20,10T Özelleştir |
Kesinlik: | ±%0.5, ±%1, ±%0.5 | İşlev: | Sıkıştırma testi, kağıt tüp sıkıştırma mukavemeti testi, patlama test cihazı, gerilme testi, kağıt t |
Birimler anahtarı: | KGF, n. (İsteğe bağlı), LBF | Test hızı: | 10 ~ 200 mm/dakika |
Boyut: | 360*264*400mm, 70*34*60 cm, 85*65*80cm | Ölçüm aralığı: | 250-5600 kPa, 10 ~ 1000mn |
Ekran modu: | LCD ekran, dijital mod | Tasarım Kriterleri: | ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87 |

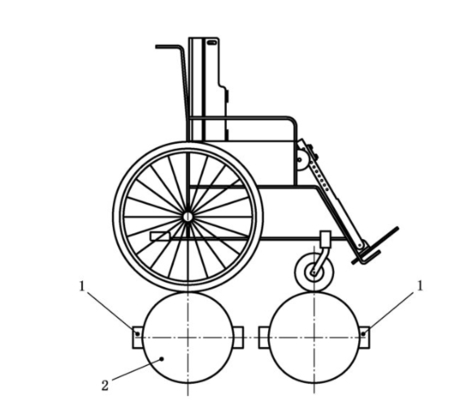

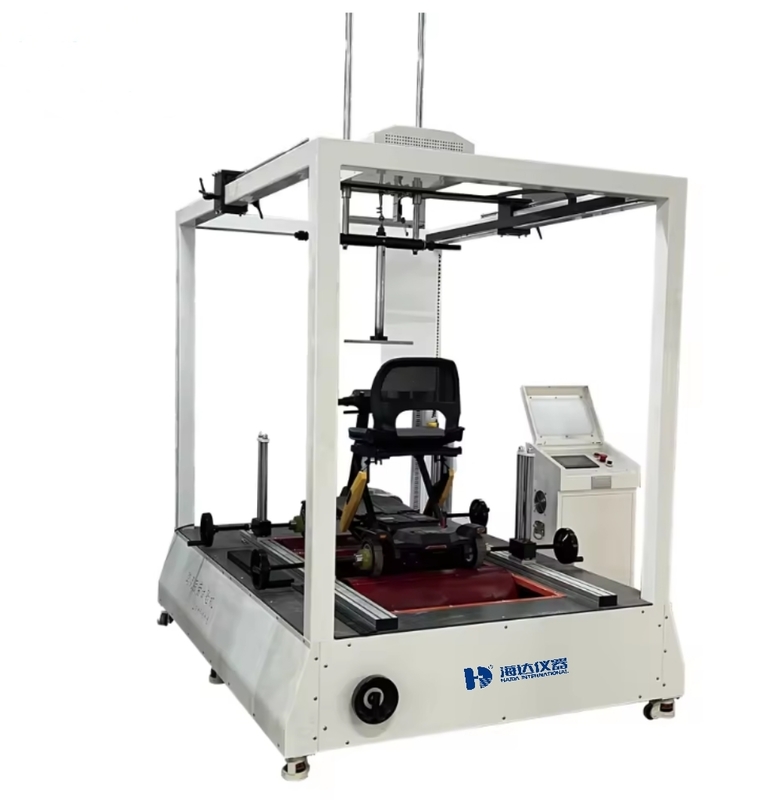

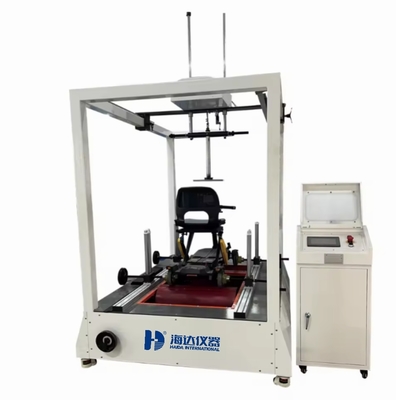

This machine performs road condition fatigue tests on wheelchairs, visually inspecting the extent of damage to the wheelchair. It is suitable for manual wheelchairs operated by the user or caregiver, as well as indoor and outdoor electric wheelchairs. Electric wheelchairs have three or more wheels mounted on two parallel drive axles, with no more than two driving wheels, and a speed not exceeding 5km/h. The machine is controlled by a PLC touch screen, allowing the setting of driving speed and distance. It can be set to distance mode or rotation mode, and will automatically shut off upon reaching the set distance.
ISO 7176-8-5.8;GB/T 1802
Maximum load capacity | ≥300kg |
Speed Range | 0-5KM/H Test speed: 1.0m/s (reference roller), 1.02—1.07m/s (driven roller) |
Test times | 0~999999 R can be set |
Obstacle height | 36±3 x 12±1 x 500mm(W×H×L), interchangeable |
Power supply | 380v, 50hz |
Roller quantity | 2-3 rollers customized |
Wheel diameter | ∮250±25mm. Width 900mm, surface knurling to increase the friction coefficient |
Wheel center distance adjustment range | 400~1000mm, adjusted by screw handwheel |
Dimensions | Approx.2200mmx1260mmx2700mm |
