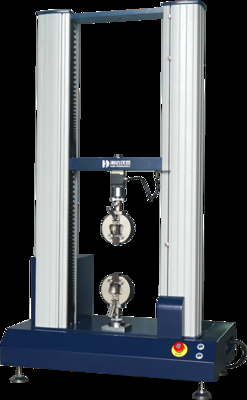

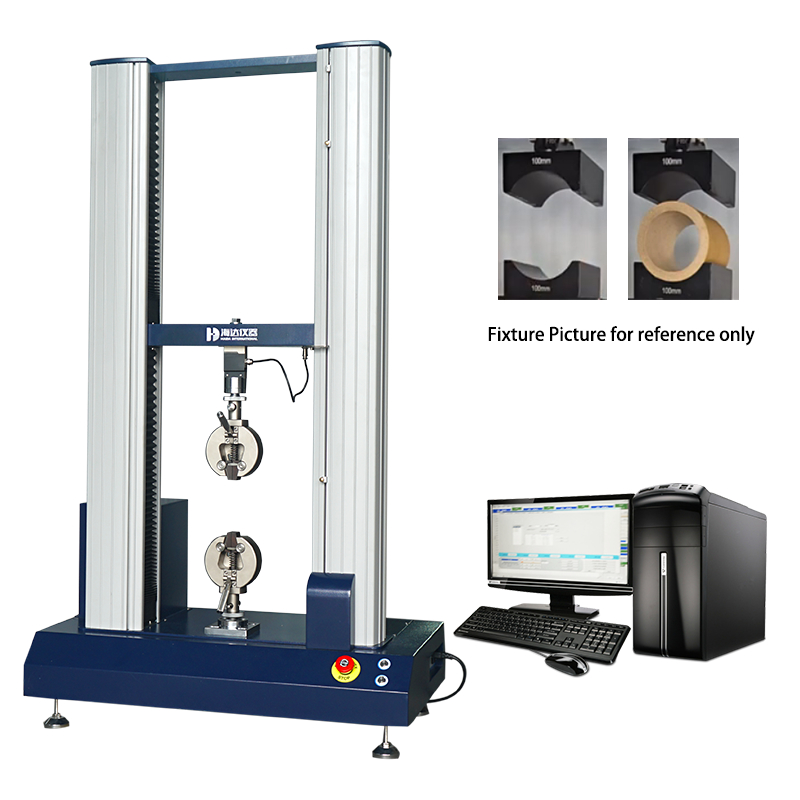

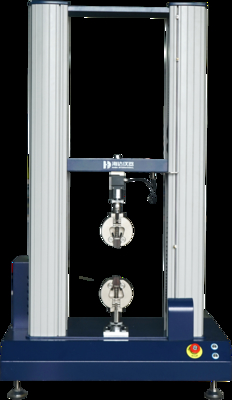

Paper Core Radial Crush Test Machine for Compression Strength

Paper Core Radial Crush Test Machine for Compression Strength
Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength Paper Core Radial Crush Test Machine for Compression Strength

Büyük resim :  Paper Core Radial Crush Test Machine for Compression Strength

Ürün ayrıntıları:
Place of Origin: China
Marka adı: Haida
Sertifika: CE、ISO
Model Number: HD-B604-S
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: Anlaşılabilir
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

Paper Core Radial Crush Test Machine for Compression Strength

Açıklama
İşlev: Sıkıştırma testi, kağıt tüp sıkıştırma mukavemeti testi, patlama test cihazı, gerilme testi, kağıt t İsim: Kağıt Kupa Tüp Bırakma Mukavemeti Test Cihazı, Kağıt Test Aleti Kağıt GSM Test Cihazı/ Patlama Mukav
Görüntülemek: LCD, dijital ekran Özellik: Kullanımı kolay
Çalışma yöntemi: Otomatik Ürün türü: Test Aletleri
Koruma cihazı: İndüksiyon tipi koruma cihazı Kontrol: PLC kontrolü
Algılama yöntemi: Basınç verici Durmak: Testi Testi
Kuvvet çözümü: Maksimum test kuvvetinin 1/500000 Titreşim modu: pistonlu
Vurgulamak:

Compression Strength Test Machine

,

Paper Core Radial Crush Test Machine

HD-B604-S Paper Core Radial Crush Test Machine
Product Overview

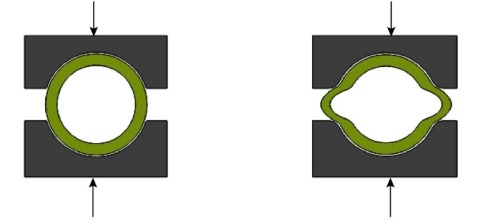

The HD-B604-S measures a paper core's resistance to inward crushing forces, evaluating its ability to maintain structural integrity under stress. This advanced testing instrument combines precision engineering with user-friendly operation for reliable results.
Key Attributes
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Operation Method Automatic
Control PLC control
Sensing Method Pressure Transmitter
Force Resolution 1/500000 of the maximum test force fs
Paper Core Radial Crush Test Machine for Compression Strength 0
General Specifications
Packaging Dimensions (W*D*H) 690*1080*1790mm
Power Supply Single-phase, 220V±10%, 50/60Hz (configurable)
Gross Weight 270kg
HS Code 9024800000
Technical Parameters
Load Capacity 5-2000kg (Optional)
Motor 400W servo motor
Driver 400W servo driver
Screw High precision imported ball screw
Control Mode Computerized, Windows mode operation
Test Speed 0.1-500mm/min (Adjustable)
Load Resolution 1/250,000
Load Accuracy ≤0.5%
Unit Switching gf/kgf/N/kN/LBf/T
Dimensions (L*W*H) 880*505*1470mm
Weight 150KG (Approx)
Power 1∮ AC 220V
Advanced Features
  • Integrated testing platform for tensile, deformation, peeling, tearing, and compression tests
  • Comprehensive data analysis including constant tensile stress, elastic modulus, stress and strain
  • Double-pillar ball nut and screw drive for high precision and smooth operation
  • Compact, integrated design suitable for various testing environments
  • Stepless speed adjustment from 1-500mm/min for versatile testing conditions
  • Intelligent safety features including multi-level limit protection, overload protection, and automatic high-speed return
  • Embedded control system with membrane key switch for efficient operation
  • Enhanced data security and reliability with embedded control system
  • Multiple connectivity options with 4 USB ports and 2 network ports
Paper Core Radial Crush Test Machine for Compression Strength 1 Paper Core Radial Crush Test Machine for Compression Strength 2 Paper Core Radial Crush Test Machine for Compression Strength 3
