Computer-Controlled Thermal Conductivity Testing Machine ABC123

Computer-Controlled Thermal Conductivity Testing Machine ABC123
Computer-Controlled Thermal Conductivity Testing Machine ABC123
Computer-Controlled Thermal Conductivity Testing Machine ABC123 Computer-Controlled Thermal Conductivity Testing Machine ABC123 Computer-Controlled Thermal Conductivity Testing Machine ABC123 Computer-Controlled Thermal Conductivity Testing Machine ABC123

Büyük resim :  Computer-Controlled Thermal Conductivity Testing Machine ABC123

Ürün ayrıntıları:
Place of Origin: Guangdong, China (Mainland)
Marka adı: Haida
Sertifika: ISO,CE
Model Number: 60119-HD
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 Set
Fiyat: Anlaşılabilir
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida
İletişim

Computer-Controlled Thermal Conductivity Testing Machine ABC123

Açıklama
Control Mode: Computer Control Control System: Controller with LED
Grip: Tensile grip, Tear force grip Printing: Built-in Printer
Screw: High Precise Ball Screw Use: utm tensile testing machine
Additional Features: Automatic Data Recording, Real-time Graph Display Transducer: load cell
Motor: Adjustable-speed motor, ball screw rod Display Device: PC
Test Method: Tensile, Compression, Bending Load Accuracy: 0.5% F.S
Unit Switchover: G, KG, N, LB Deformation Measuring: YYU–10/50
Warranty Period: 1 year Elongation Accuracy: 0.001mm
Test Force: 300KN(600KN,1000KN,2000KN) Sensor: Celtron load cell
Measure Range: 2%-100%F.S Clamping Mode: Hydraulically
Model: ABC123 Test Speed: 0.01-500 mm/min
Weight: Approx.75kg
Vurgulamak:

Computer-Controlled Testing Machine

,

Thermal Conductivity Testing Machine

60119-HD Thermal Conductivity Testing Machine
Product Specifications
Attribute Value
Control Mode Computer Control
Control System Controller with LED
Grip Tensile grip, Tear force grip
Printing Built-in Printer
Screw High Precise Ball Screw
Use UTM tensile testing machine
Additional Features Automatic Data Recording, Real-time Graph Display
Transducer Load cell
Motor Adjustable-speed motor, ball screw rod
Display Device PC
Test Method Tensile, Compression, Bending
Load Accuracy 0.5% F.S
Unit Switchover G, KG, N, LB
Deformation Measuring YYU–10/50
Warranty Period 1 year
Elongation Accuracy 0.001mm
Test Force 300KN(600KN,1000KN,2000KN)
Sensor Celtron load cell
Measure Range 2%-100%F.S
Clamping Mode Hydraulically
Model ABC123
Test Speed 0.01-500 mm/min
Weight Approx.75kg
Product Description

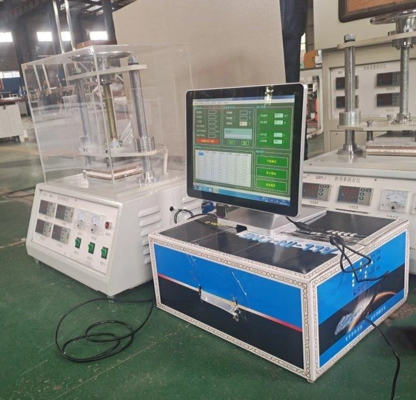

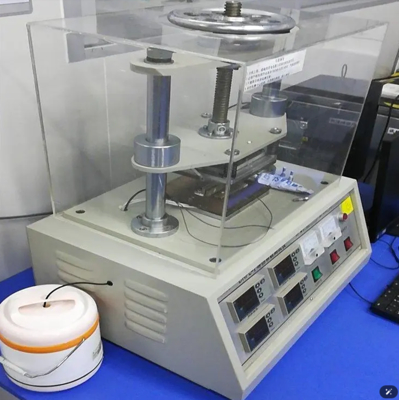

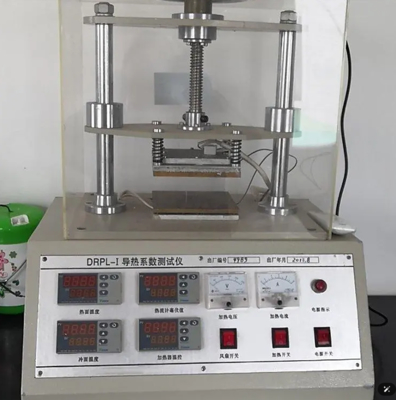

The 60119-HD Thermal Conductivity Testing Machine (Plate Heat Flow Meter Method) provides accurate measurement of thermal conductivity and resistivity. Computer integration enables automated inspection and report generation.
Computer-Controlled Thermal Conductivity Testing Machine ABC123 0
This testing method offers simplicity, speed, and excellent repeatability, making it ideal for heat transfer R&D in metal materials. It's also suitable for testing plastics, rubber, ceramics, glass, graphite, and other insulating materials. Complies with GB/T10295-2008 standard.
Technical Parameters
  • Heat conductivity area: Sheet sample 0.015-5W/mk (accuracy <4%), Round column sample 3-500W/mk (accuracy <4%)
  • Heat surface temperature: Room temp.-150℃ or room temp.-300℃ (0.2 level accuracy, DPI 0.01℃)
  • Cold surface: Room temperature (0.2 level accuracy, DPI 0.01℃)
  • Temperature control: Flat type heater, two-way controllable Si
  • Cooling system: Air blast cooling
  • Automation: Computer-controlled testing
  • Heat flow meter: WPY type (23.26w/m²*mV)
  • Observation: Plexiglass wind cover for direct process viewing
  • Heat transfer area: φ60 or φ80mm
  • Adjustable gap: 0-100mm
  • Power supply: 220V±10%, 50Hz
Computer-Controlled Thermal Conductivity Testing Machine ABC123 1
