Accurate Bottle Axis Deviation Tester For Verticality Measurement

Accurate Bottle Axis Deviation Tester For Verticality Measurement
Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement Accurate Bottle Axis Deviation Tester For Verticality Measurement

Büyük resim :  Accurate Bottle Axis Deviation Tester For Verticality Measurement

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Haida
Sertifika: CE、ISO
Model numarası: 5078-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: Anlaşılabilir
Ambalaj bilgileri: reçine elyafı ve PP film ile korunan her set, daha sonra operasyon görevlisi ile Güçlü tahta sandık
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

Accurate Bottle Axis Deviation Tester For Verticality Measurement

Açıklama
İşlev: Sıkıştırma testi, kağıt tüp sıkıştırma mukavemeti testi, patlama test cihazı, gerilme testi, kağıt t İsim: Kağıt Kupa Tüp Bırakma Mukavemeti Test Cihazı, Kağıt Test Aleti Kağıt GSM Test Cihazı/ Patlama Mukav
Görüntülemek: LCD, dijital ekran Birimler anahtarı: KGF, n. (İsteğe bağlı), LBF
test hızı: 10 ~ 200 mm/dakika Boyut: 360*264*400mm, 70*34*60 cm, 85*65*80cm
ölçüm aralığı: 250-5600 kPa, 10 ~ 1000mn Ekran modu: LCD ekran, dijital mod
Tasarım kriterleri: ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87
Vurgulamak:

bottle axis deviation tester

,

Accurate Bottle Axis Deviation Tester

Bottle Axis Deviation Tester
Key Features
  • Precision measurement of bottle container vertical deviation
  • Essential for quality control in food, cosmetics, and pharmaceutical industries
  • Four-claw self-centering chuck with high concentricity
  • Adjustable height and orientation for various bottle types
  • Digital LCD display with multiple unit options
  • Computer connectivity for data analysis (optional)
Technical Specifications
Parameter Value
Sample Diameter Positive claw 3-55mm, reverse claw 55-145mm
Centering Chuck Four-claw/three-claw optional
Measuring Range 0-12.7mm
Resolution 0.001mm
Indication Error ±0.005mm
Measurement Error ≤0.05mm
Measurable Height 5mm-400mm
Weight 20kg
Dimensions 330mm × 240mm × 240mm
Testing Principle

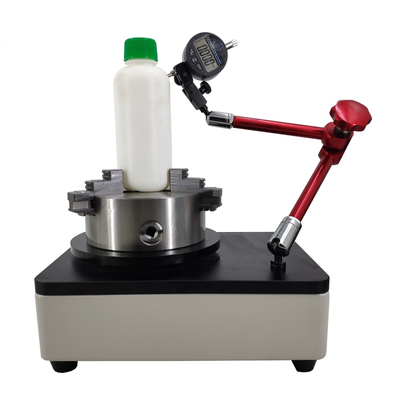

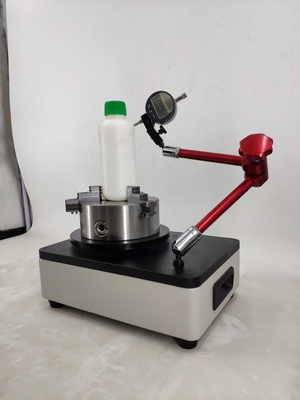

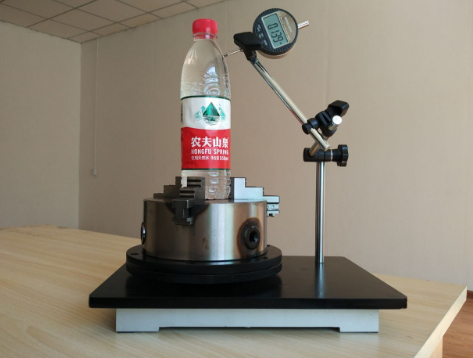

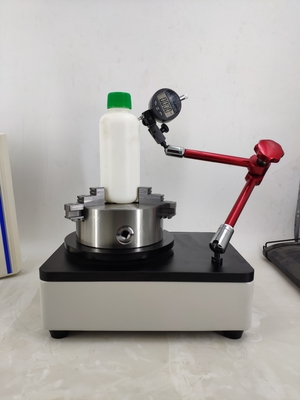

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.

Compliance Standards
  • QB2357
  • QB/T1868
  • YY 0056
  • YBB 00012012
  • GBT 8452
  • GB 2637
  • YBB 00332002
  • YBB 00042012
  • YBB 00052012
Applications

Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.

Accurate Bottle Axis Deviation Tester For Verticality Measurement 0
About Haida

Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
