Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

Non-Metallic Insulating Materials Tested With Flammability Testing Equipment
Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

Büyük resim :  Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Haida
Sertifika: CE,,ISO
Model numarası: 6002-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Anlaşılabilir
Ambalaj bilgileri: reçine elyafı ve PP film ile korunan her set, daha sonra operasyon görevlisi ile Güçlü tahta sandık
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

Non-Metallic Insulating Materials Tested With Flammability Testing Equipment

Açıklama
Hazne hacmi: ≥0.5 m³, cam gözlem kapısı ile. Güç kaynağı: AC 220V, 50Hz, 1KVA
İç aydınlatma: 20'den az lüks. Parlama kablosu ucunun hareket hızı: 10 mm/s ila 25 mm/s (numuneden yaklaşma veya geri çekilme)
Vurgulamak:

Flammability Testing Equipment

,

1KVA Flammability Testing Equipment

Glow-Wire Tester
Product Description

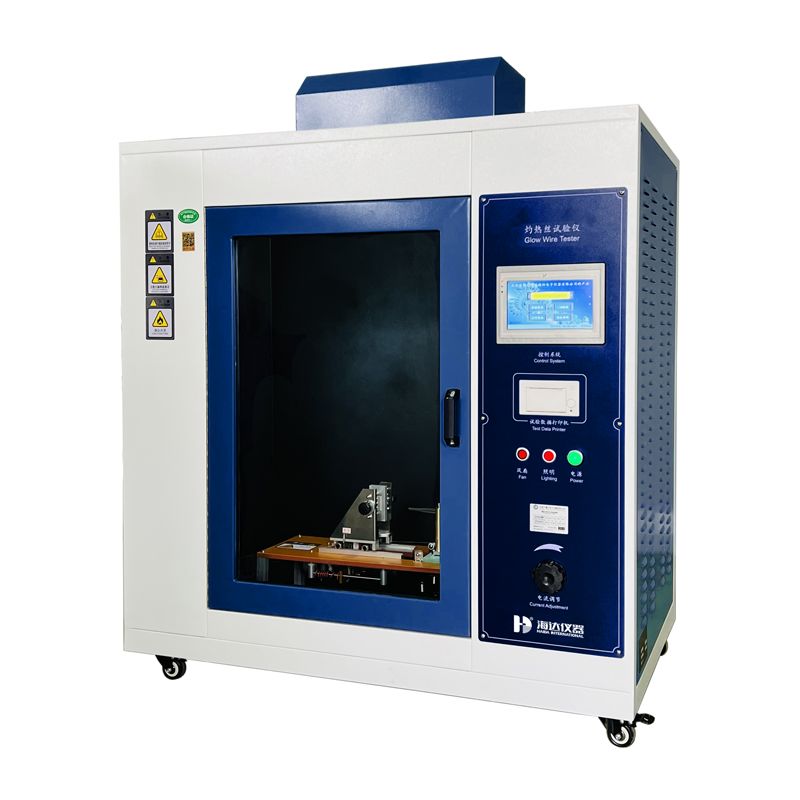

The glow-wire test simulates thermal stress or ignition sources caused by overheated components or overloaded resistors in a short period, assessing fire hazards for parts or components under fault or overload conditions. It applies to plastic and non-metallic insulating materials used in electrical and electronic products, components, and household appliance parts, such as switch housings and relay sockets. This tester features a PLC + color LCD touchscreen control system with an intuitive interface and includes a built-in printer for recording test conditions and results.

Test Standard

IEC60695-2-10 / 11 / 12 / 13 - 2013, GB/T 5169.10, GB/T 5169.11, IEC 60884-1, GB 2099.1, IEC 60335-1, GB 4706.1, VDE 0620-1
Product Specifications

Model 6002-HD
Control System 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
Display System 7-inch color LCD touchscreen for setting and displaying glow time (Ta), ignition time (Ti), flame extinction time (Te), glow-wire temperature, print interface, and operational status.
Chamber Volume ≥0.5 m³, with a glass observation door.
Internal Illuminance Less than 20 Lux.
Glow-Wire Temperature Adjustable from ambient + 10°C to 1000°C, measured using a Ø1mm nickel-chromium armored (K-type) imported thermocouple.
Force Applied to Sample 0.95 ± 0.10 N, with a penetration depth limited to 7.0 ± 0.5 mm (automatically sensed).
Glow-Wire Made of nickel/chromium alloy (>77% Ni / 20±1% Cr). The diameter before bending is 4.0 ± 0.07 mm, with other dimensions manufactured to standard tolerances.
Movement Speed of Glow-Wire Tip 10 mm/s to 25 mm/s (approaching or retracting from the sample).
Wooden Board White pine board, thickness >10 mm, placed 200±5 mm below the sample contact point.
Timer Adjustable range: 0-999.9 seconds, accuracy: ±0.1 seconds. Glow time (Ta) is settable, while ignition duration (Ti) and flame extinction time (Te) are recordable.
Key Features Automated control system. After initiation, the sample carriage automatically moves the specimen to the glow-wire and retracts after the set glow time. Features black interior, ventilation, lighting, and digital displays for easy observation and recording.
Power Supply AC 220V, 50Hz.
Non-Metallic Insulating Materials Tested With Flammability Testing Equipment 0
