Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests
Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Büyük resim :  Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Haida
Sertifika: CE,,ISO
Model numarası: 6014-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: Anlaşılabilir
Ambalaj bilgileri: reçine elyafı ve PP film ile korunan her set, daha sonra operasyon görevlisi ile Güçlü tahta sandık
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests

Açıklama
termokupl: 0,5 mm çapında kılıflı zırhlı K-Tipi (NICR/NIAL) ince telli termokupl Zamanlayıcı: Ayarlanabilir Aralık: 0.01-99.99 saniye
Çapraz: Ø5.50 ± 0.01mm Uzunluk: 8.80 ± 0.02mm
Eğim açısı: 45 ± 0.5 ° Kütle (Ön köprü kurma): 1.76g ± 0.01g
Malzeme: Yüksek iletkenlik elektrolitik bakır Yüzeyi bitirin: Tamamen cilalı
Vurgulamak:

Adjustable Timer Flammability Testing Equipment

,

Accurate Flammability Testing Equipment

Flame Temperature Calibration Device 50W

Product Description

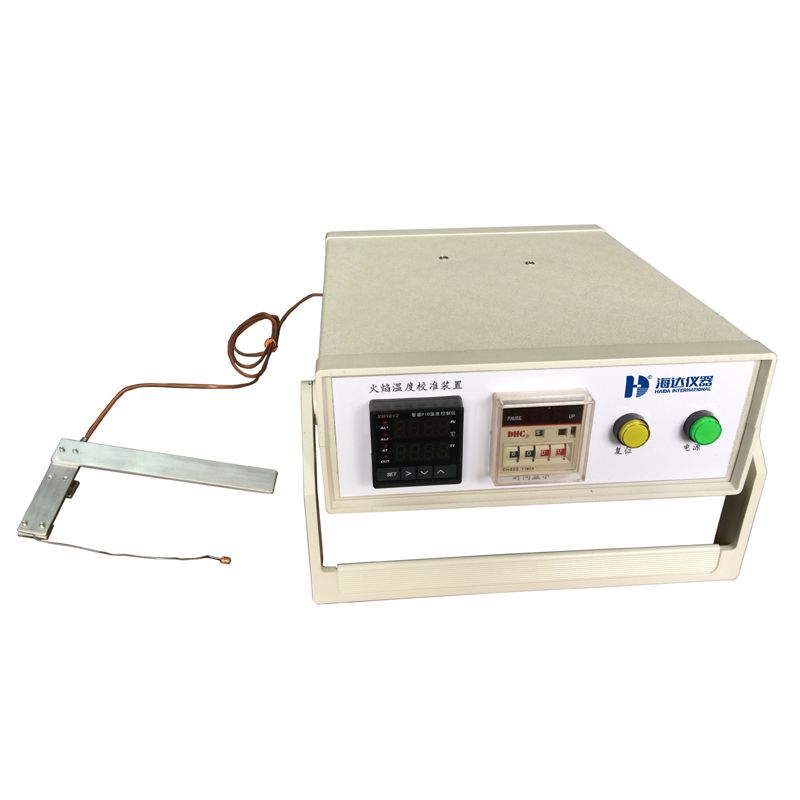

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure

Position the copper block 10±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 44±2 seconds to validate the flame for testing. Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Product Specifications
Model 6014-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath
Timer Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter Ø5.50±0.01mm
Length 8.80±0.02mm
Bevel Angle 45±0.5°
Mass (Pre-drilling) 1.76g±0.01g
Material High-conductivity electrolytic copper
Surface Finish Fully polished
Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests 0






About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests 1Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests 2Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests 3Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests 4Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests 5Flammability Testing Equipment For Precise Flame Temperature Measurement In Tests 6




Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined



FAQ:

Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test equipment and 6 years of export expertise.

Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days

Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.

Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines

Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)

Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution

Q: How do you ensure product quality and service?

A:100% pre-shipment inspection with full performance testing

Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators

Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)

Market-proven reliability:

Globally recognized by industrial users

Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical parameters and application requirements.
