Ürün ayrıntıları:
|
Malzeme: | Çelik | İsteğe bağlı özellikler: | Özelleştirilebilir yük kapasitesi ve boyutları |
---|---|---|---|
Anahtar kelime: | mobilya test makinesi | Güç: | Elektronik |
Test yöntemi: | Dinamik ve statik yük testi | Güç kaynağı: | AC/DC |
kullanmak: | Sandalye | Tip: | Test ekipmanı |
Birim anahtarı: | gf,kgf, N, LBf, W, KN, T | Sürüş modu: | değişken frekanslı motor ve triger kayışı |
Güç kaynağı: | Elektrik | LCD ekranı: | Evet |
Ayarlanabilir kolçaklar: | Evet | ||
Vurgulamak: | 5123-HD Wheelchair Rain Test Machine,Steel Wheelchair Rain Test Machine |

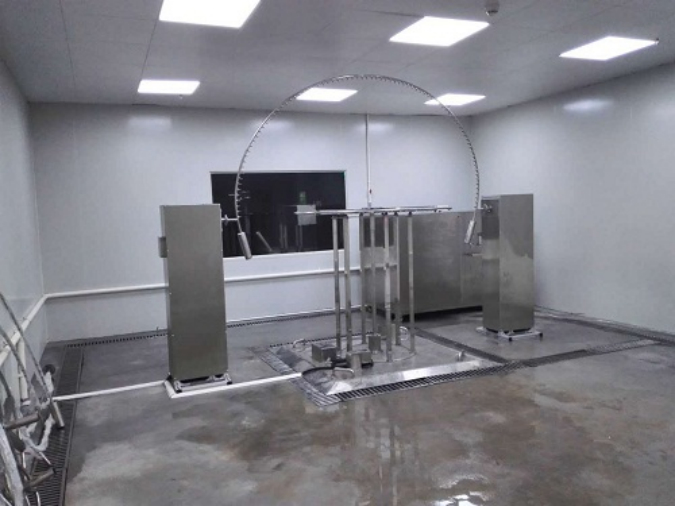

Image For Reference Only
Power supply source: Three-phase,380V±10%,50/60Hz (canbeappointed)
HS Code: 8424899909
Item | Specification |
---|---|
Dimension of waterproof test room (W*D*H) | 5500*4500*4500mm (Waterproof test room provided by buyer) |
Spray system | Consists of pumps, hydraulic pressure gauge, stationary nozzle stents |
Oscillating tube | Radius 800mm |
Oscillating angle | IPX3: spray ±60° from vertical line to each side, total 120° IPX4: spray ±180° from vertical line to each side, total 360° |
Oscillating speed | IPX3: 2*120° for 4s IPX4: 2*360° for 12s |
Spray nozzle | Diameter: 0.4mm, removable Ensure the water sprays in a line and without tolerance |
Distance between two nozzles | 50mm |
Turntable diameter | 1100mm |
Turntable rotation speed | 1-3 cycles/min |
Water flow of each nozzle | 0.07 L/min +5% |
Test duration | 1~999h999min, adjustable |
Pressure gauge | 80-150Kpa |
Distance from nozzle to specimen surface | 200mm |
Material | Oscillating tube / spray nozzle / sample turntable - Stainless steel |
Chamber material | Stainless steel, with observation window |
Safety protection device | Short circuit protection, grounding protection, water shortage protection, audible and visual alarm |
Water spray nozzle
PLC operation interface
