HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity
HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Büyük resim :  HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Ürün ayrıntıları:
Place of Origin: China
Marka adı: Haida
Sertifika: CE、ISO
Model Number: HD-A513-C
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: Anlaşılabilir
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity

Açıklama
İşlev: Sıkıştırma testi, kağıt tüp sıkıştırma mukavemeti testi, patlama test cihazı, gerilme testi, kağıt t İsim: Kağıt Kupa Tüp Bırakma Mukavemeti Test Cihazı, Kağıt Test Aleti Kağıt GSM Test Cihazı/ Patlama Mukav
Görüntülemek: LCD, dijital ekran Özellik: Kullanımı kolay
Çalışma yöntemi: Otomatik Ürün türü: Test Aletleri
Koruma cihazı: İndüksiyon tipi koruma cihazı Kontrol: PLC kontrolü
Algılama yöntemi: Basınç verici Durmak: Testi Testi
Kuvvet çözümü: Maksimum test kuvvetinin 1/500000 Titreşim modu: pistonlu
Vurgulamak:

Paper Bowl Compression Test Machine

,

500kg Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine
Product Overview

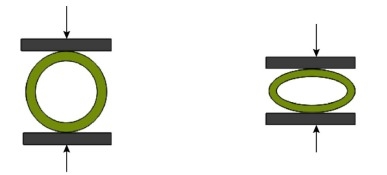

Specialized testing equipment for evaluating the flat compression performance of paper tubes and cores, compliant with GB/T 27591 standards.

Key Features
  • Double-column ball screw drive ensures high-precision and stable operation
  • Force value accuracy better than 1.0 level for precise test data
  • Embedded USB interface or network port for convenient data transmission
  • Adjustable test speed to accommodate various testing requirements
  • PLC control system with automatic operation
  • Pressure transmitter sensing method with 1/500,000 force resolution
Technical Specifications
Capacity 500kg, imported load cell
Load Resolution 1/250,000
Load Precision Within ±0.5%
Motor 400W Panasonic servo motor
Operation Mode PC controlled with software, Windows 10 operation
Test Plate ≥100x100mm
Test Speed 12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke 600mm (excluding fixture)
Test Units gf/kgf/N/kN/lbf/T
Dimensions 790 x 610 x 1100mm (LxWxH)
Weight Approx. 170 kg
Power 1∮, 220V, 500W
General Specifications
Packaging Dimensions 1240 x 840 x 1320mm (WxDxH)
Power Supply Single-phase, 220V±10%, 50/60Hz (customizable)
Gross Weight 180kg
Product Images

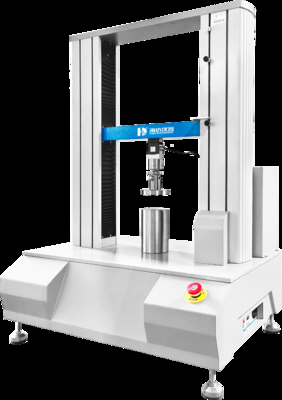

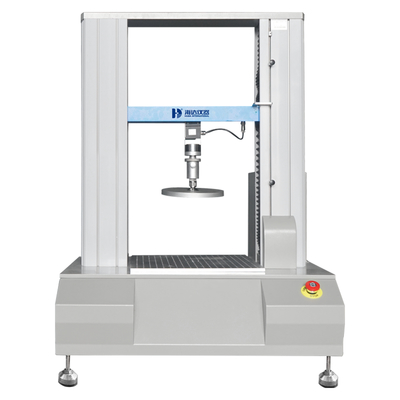

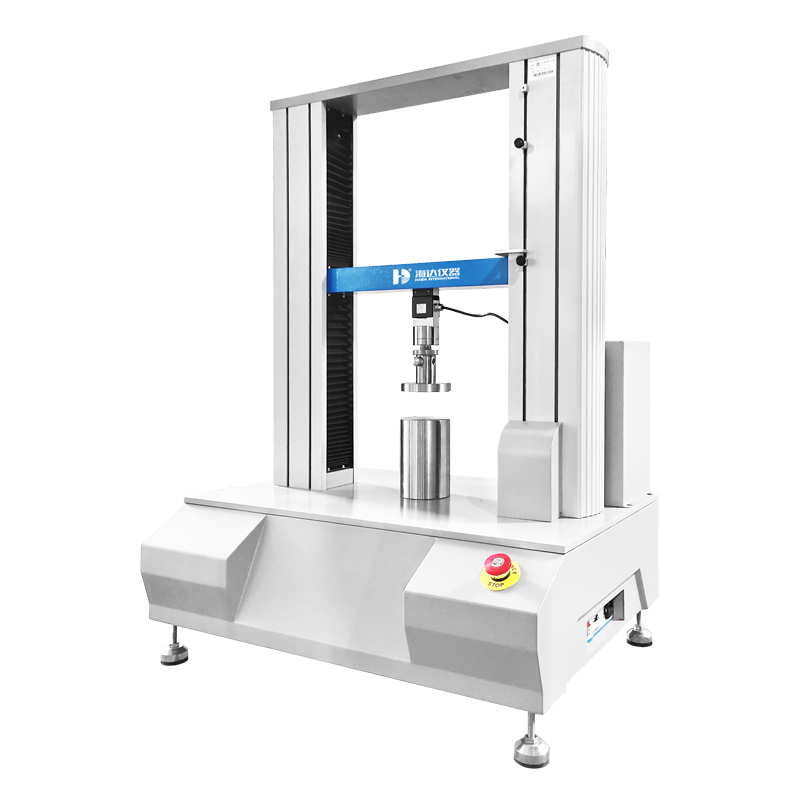

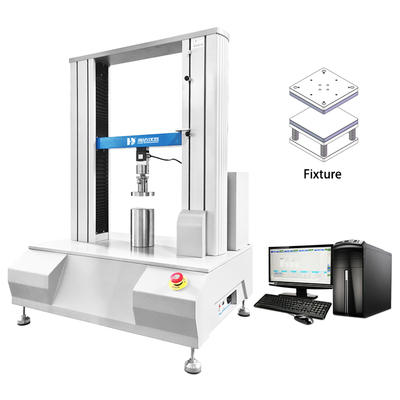

HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 0 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 1 HD-A513-C Paper Bowl Compression Test Machine 500kg Capacity 2
