HD-A513-C Paper Bowl Compression Test Machine with Digital Display

HD-A513-C Paper Bowl Compression Test Machine with Digital Display
HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display HD-A513-C Paper Bowl Compression Test Machine with Digital Display

Büyük resim :  HD-A513-C Paper Bowl Compression Test Machine with Digital Display

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Haida
Sertifika: CE、ISO
Model numarası: HD-A513-C
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Her set reçine lifi ve PP filmi ile korunmuş, daha sonra Operasyon Adamı ile güçlü ahşap kılıfta yer
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

HD-A513-C Paper Bowl Compression Test Machine with Digital Display

Açıklama
İşlev: Sıkıştırma testi, kağıt tüp sıkıştırma mukavemeti testi, patlama test cihazı, gerilme testi, kağıt t İsim: Kağıt Kupa Tüp Bırakma Mukavemeti Test Cihazı, Kağıt Test Aleti Kağıt GSM Test Cihazı/ Patlama Mukav
Görüntülemek: LCD, dijital ekran Düşme testi: Numunenin köşeleri, kenarları ve yüzleri
Görüntüleme yöntemi: Dijital ekran Üretici: Guangdong Çin (Anakara)
Rapor çıktısı: Mini yazıcı, termal baskı Model: mikrobilgisayar kontrolü
Sürücü modu: motorlu Doğruluğu ölçme: 0.20ΔE*AB
Zaman göstergesi: Testler sırasında zaman görüntülemek için Yazılım: TM 2101
Aydınlatıcı: D65 Güç: AC 220V,50Hz
Genlik aralığı: 25,4 mm (1 inç) DIŞ ÖLÇÜ: 400 (L) × 210 (W) × 395 (h) mm
Test Nem Aralığı: 0 ~% 50 Zorla okuma: KGF, IBF, N, KN, T vb.
Sürtünme yükü: 908g (2lb) | 1810g (4 lb) Test ortamı: Sıcaklık: 23 ± 2 ℃, Nem:%20 RH-70 RH
Ölçüm aralığı: 0-5 N Uzun dalga ultraviyole: 365
Çalışma modu: Bilgisayar
Vurgulamak:

HD-A513-C Compression Test Machine

,

Paper Bowl Compression Test Machine

HD-A513-C Paper Bowl Compression Test Machine
Product Overview

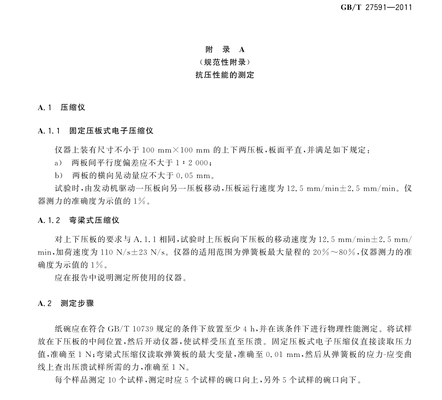

Specialized equipment for testing the compression performance of paper bowls, compliant with GB/T 27591 standards.

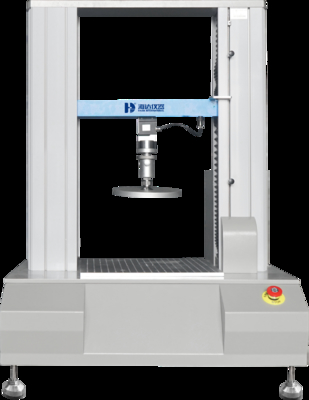

HD-A513-C Paper Bowl Compression Test Machine with Digital Display 0
Key Features
  • Double-column ball screw drive ensures high-precision and stable operation
  • Force value accuracy better than 1.0 level for precise test data
  • Embedded USB interface or network port for convenient data transmission
  • Adjustable test speed to accommodate various testing requirements

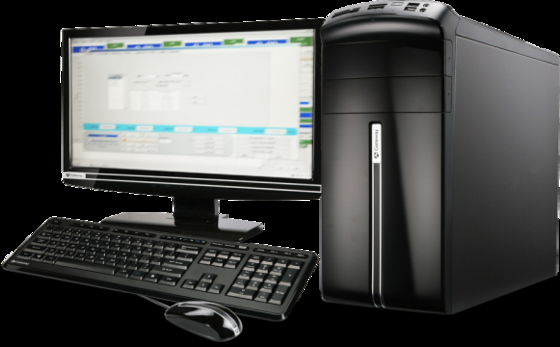

  • Microcomputer control with TM 2101 software
  • Digital LCD display with multiple unit options (Kgf, Ibf, N, KN, T)
  • Thermal printing for report output
Technical Specifications
Capacity 500kg, imported load cell
Load Resolution 1/250,000
Load Precision Within ± 0.5%
Motor 400W Panasonic servo motor
Test Speed 12.5±2.5 mm/min (0.1-500mm/min adjustable)
Max. Stroke 600mm (excluding fixture)
Dimensions 790 x 610 x 1100mm (L*W*H)
Weight Approx. 170 kg
Power 1∮, 220V, 500W
General Specifications

Packaging Dimensions: 1240 x 840 x 1320mm (WxDxH)

Power Supply: Single-phase, 220V±10%, 50/60Hz (customizable)

Gross Weight: 180kg

Test Environment: Temperature: 23±2℃, Humidity: 20%RH-70%RH

About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.

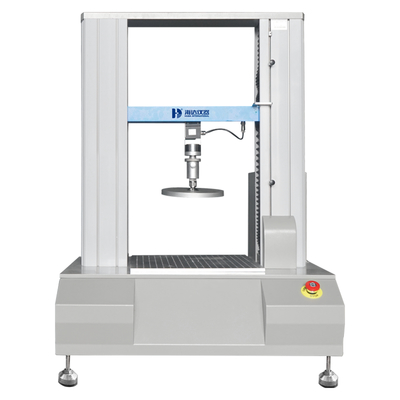

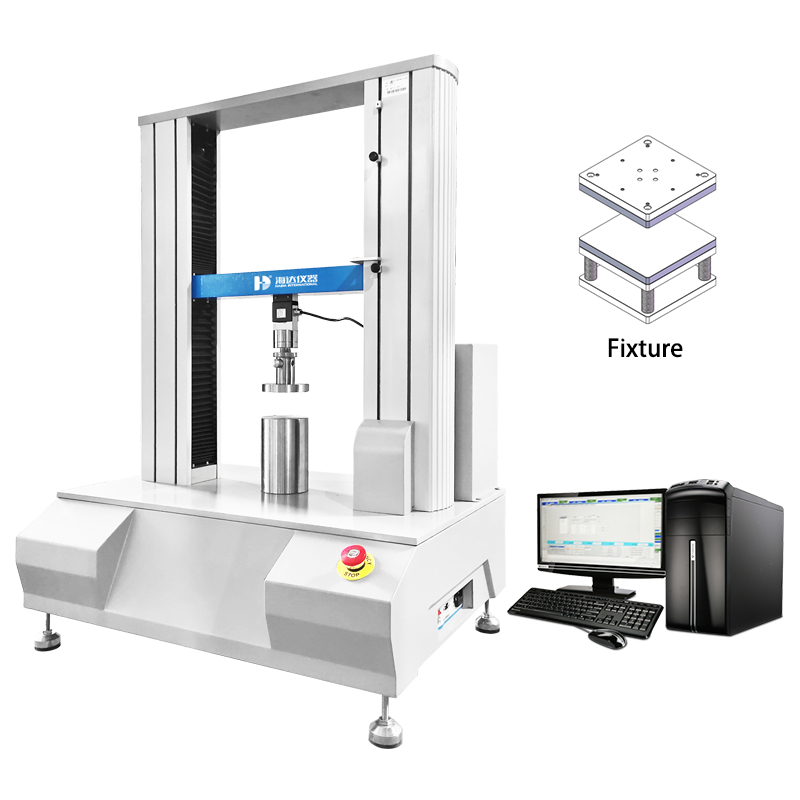

HD-A513-C Paper Bowl Compression Test Machine with Digital Display 1 HD-A513-C Paper Bowl Compression Test Machine with Digital Display 2 HD-A513-C Paper Bowl Compression Test Machine with Digital Display 3
