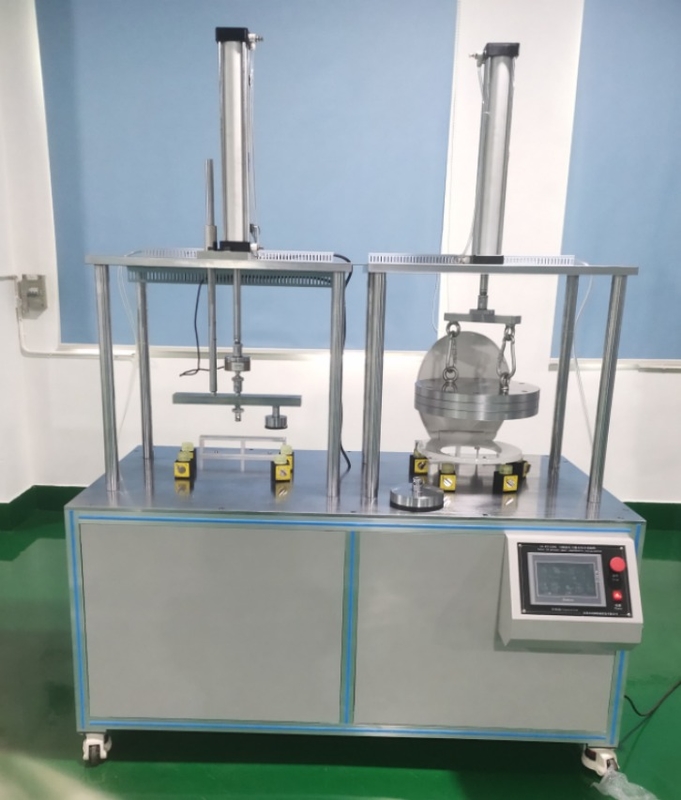

5057-HD Toilet Seat Static Load & Impact Test Machine

5057-HD Toilet Seat Static Load & Impact Test Machine
5057-HD Toilet Seat Static Load & Impact Test Machine

Büyük resim :  5057-HD Toilet Seat Static Load & Impact Test Machine

Ürün ayrıntıları:
Place of Origin: China
Marka adı: Haida
Sertifika: ISO
Model Number: 5057-HD
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: Anlaşılabilir
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month
İletişim

5057-HD Toilet Seat Static Load & Impact Test Machine

Açıklama
heat source: Ceramic heater touch screen: LCD
Display: LCD screen Testing Time: Adjustable
Test Parameters: Temperature, pressure, weight, etc. Test Results: Quantitative and qualitative data
Temperature Range: Room temperature to 300°C Tank Body Matiral: PVC
Torque Rod Diameter: 10±1mm Customer: More than 500+
Voltage: 110V/220V Leverage Weight: 1KG±0.1KG
Machine Size: 1350mm*1050mm*2550mm Test Mass: 1KG
Leverage: 1 m
Vurgulamak:

Impact Test Machine

,

Static Load Toilet Seat Test Machine

5057-HD Toilet Seat Ring and Cover Static Load & Impact Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Display LCD touch screen
Testing Time Adjustable
Test Parameters Temperature, pressure, weight, etc.
Test Results Quantitative and qualitative data
Temperature Range Room temperature to 300°C
Tank Body Material PVC
Torque Rod Diameter 10±1mm
Voltage 110V/220V
Leverage Weight 1KG±0.1KG
Machine Size 1350mm*1050mm*2550mm
Test Mass 1KG
Leverage 1 m
Applications & Test Purpose
This machine tests toilet seats and cover plates by:
  • Installing the toilet seat and cover plate into usable state
  • Placing a steel block (φ160mm diameter, >10mm thickness) at the geometric center
  • Using a 13mm rubber block (65°±5 hardness) at the bottom
  • Loading the steel block until total load reaches 1.5KN (including self-weight) and maintaining for 3 minutes
Compatible with bilateral pressure, unilateral pressure, and dynamic impact tests of seat rings.
Test Standard: JC/T 764-2008 5.4.7
Standard Features
  • Test stations: Two stations (static pressure testing and impact testing)
  • Load pressure test range: Static pressure: 0-2000N, accuracy 0.5 grade
  • Force application time: 1 second to 999999 seconds
  • Force application method: Cylinder
  • Impact on heavy objects: 75kg
  • Impact speed: 10-15 times per minute
  • Frequency setting: 1 to 999,999 times
  • Control mode: PLC + touch screen
  • Power Supply: AC220±10% 50Hz
  • Gas source: 6kgf
About Haida International Equipment Co., Ltd
Established in 2004 and located in Dongguan, Guangdong Province, China, we specialize in production and R&D of material physical properties testing equipment. Our facilities include:
  • Independent research and development center
  • Four testing equipment production lines: textile, footwear, leather, and mask
  • International market presence since 2006
5057-HD Toilet Seat Static Load & Impact Test Machine 0
5057-HD Toilet Seat Static Load & Impact Test Machine 1
5057-HD Toilet Seat Static Load & Impact Test Machine 2
5057-HD Toilet Seat Static Load & Impact Test Machine 3
Customer Testimonials
5057-HD Toilet Seat Static Load & Impact Test Machine 4
5057-HD Toilet Seat Static Load & Impact Test Machine 5
Why Choose Haida?
  • Design & Production: Custom solution consultation, cost-performance recommendations, and special model R&D
  • Shipping & Delivery: One-stop service from production to installation and training
  • Warranty: 1 year warranty with lifetime technology support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
What is your warranty policy?
Our standard warranty is one year, including technical support and parts replacement. If necessary, our engineers can provide on-site service.
What is your order process?
Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Can we visit your factory before ordering?
Yes, we welcome factory visits and can assist with airport pickup and hotel arrangements.
Do you offer customization services?
Yes, we provide both standard and customized machines tailored to your specific requirements.
