Infrared Water Vapor Permeability Tester for Packaging Materials

Sertifika
Çin Hai Da Labtester Sertifikalar
Çin Hai Da Labtester Sertifikalar
Müşteri yorumları
Evet, geçen hafta makineyi aldık. Bu Makine çok hoştu ve satış sonrası serilerine teşekkür etti, çok profesyoneldi.

—— Peter Maas

Şirket adına fabrikalarınızı ve şirketlerinizi ziyaret etmek için, teknik personel çok profesyonel ve sabırlıdır, sizinle tekrar işbirliği yapmaktan mutluluk duyacağımı düşünüyorum.

—— Steve Hubbard

Ben sohbet şimdi

Infrared Water Vapor Permeability Tester for Packaging Materials

Infrared Water Vapor Permeability Tester for Packaging Materials
Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials Infrared Water Vapor Permeability Tester for Packaging Materials

Büyük resim :  Infrared Water Vapor Permeability Tester for Packaging Materials

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Haida
Sertifika: CE、ISO
Model numarası: 5098-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: Anlaşılabilir
Ambalaj bilgileri: reçine elyafı ve PP film ile korunan her set, daha sonra operasyon görevlisi ile Güçlü tahta sandık
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

Infrared Water Vapor Permeability Tester for Packaging Materials

Açıklama
İşlev: Sıkıştırma testi, kağıt tüp sıkıştırma mukavemeti testi, patlama test cihazı, gerilme testi, kağıt t İsim: Kağıt Kupa Tüp Bırakma Mukavemeti Test Cihazı, Kağıt Test Aleti Kağıt GSM Test Cihazı/ Patlama Mukav
Görüntülemek: LCD, dijital ekran Birimler anahtarı: KGF, n. (İsteğe bağlı), LBF
Ekran modu: LCD ekran, dijital mod Titreşim modu: Karşılıklı
Hareket sürüşü: top vidası ve servo motor Özelleştirilmiş Destek: OEM ODM
Kullanım: Kağıt test aleti Özellikler: Yüksek hassasiyet, kolay çalışma, güvenilir performans
Denetleyici: PLC (Programlanabilir Lojik Denetleyici) Düşme testi: Numunenin köşeleri, kenarları ve yüzleri
Görüntüleme yöntemi: Dijital ekran Zaman göstergesi: Test(ler) sırasında zamanı görüntülemek için
ABD bölgesi: tencere Tasarım kriterleri: EN71 ANSI, UL, ASTM ISTA
Kontrol sistemi: PLC Programlı Kontrol Köken: ÇİN
Test yöntemleri: Elektronik, mekanik, manuel Ağırlık: Özelleştirilebilir
İletim modu: Pnömatik Cihaz + Redüktör + Sürüm Tarama modu: tek çizgi
Kullanmak: Ambalaj malzemeleri
Vurgulamak:

Infrared Permeability Tester

,

Packaging Materials Vapor Permeability Tester

,

Packaging Materials Permeability Tester

EQUIPMENT DETAILS 5098-HD WATER VAPOR PERMEABILITY TESTER (INFRARED METHOD)
Product Specifications
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display LCD, Digital display
Units switch Kgf, N. (Optional), Lbf
Control System PLC Programmed Control
Test Methods Electronic, mechanical, manual
Design Criteria EN71 ANSI, UL, ASTM ISTA
Features High precision, easy operation, reliable performance
Product Description
This infrared moisture analysis-based tester provides wide-range, high-efficiency water vapor transmission rate testing for medium and high water vapor barrier materials. It is suitable for testing plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, and various packaging materials across industries including food, medicine, medical equipment, daily chemicals, and photovoltaic electronics.
Test Standards
GBT 26253, ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, ISO 15106-3, DIN 53122-2, YBB 00092003
Key Features
  • Laser pulse modulated infrared sensor with long optical path absorption for higher measurement accuracy
  • Three independent test chambers for simultaneous testing of identical or different samples
  • Computer-controlled fully automated test process with one-button operation
  • High-quality components ensure instrument stability and reliability
  • Automatic test execution with parameter settings and result saving
  • Real-time test status monitoring with intelligent software for data analysis
  • Self-detection capabilities and power-off data storage protection
  • Precise automated temperature and humidity control for various test conditions
  • Multiple test process judgment modes (manual, proportional, cyclic)
  • Expandable test range for large transmittance testing requirements
Technical Specifications
Measuring range (membrane) 0.01~40 g/(m²*day) (standard)
0.1~1000 g/(m²*day) (optional)
Resolution 0.001 g/(m²*day)
Number of samples 1~3 pieces
Sample size φ110mm
Temperature control range 5℃~65℃ (constant temperature water bath)
Temperature control accuracy ±0.1℃
Humidity control range 0% RH, 5%~90%RH, 100%RH
Humidity control accuracy ±1%RH
Industry Applications
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They comply with UL, ASTM, JIS, GB, and ISO standards.

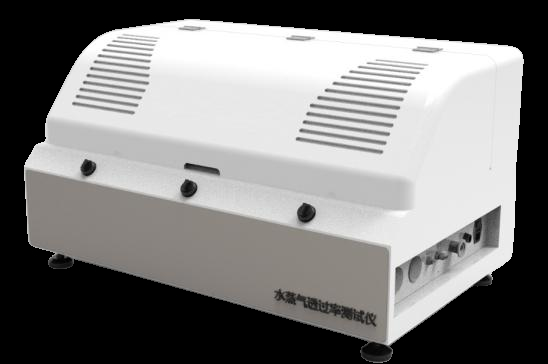

Infrared Water Vapor Permeability Tester for Packaging Materials 0

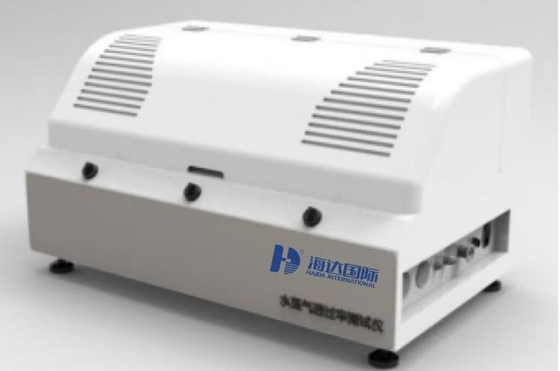

Infrared Water Vapor Permeability Tester for Packaging Materials 1

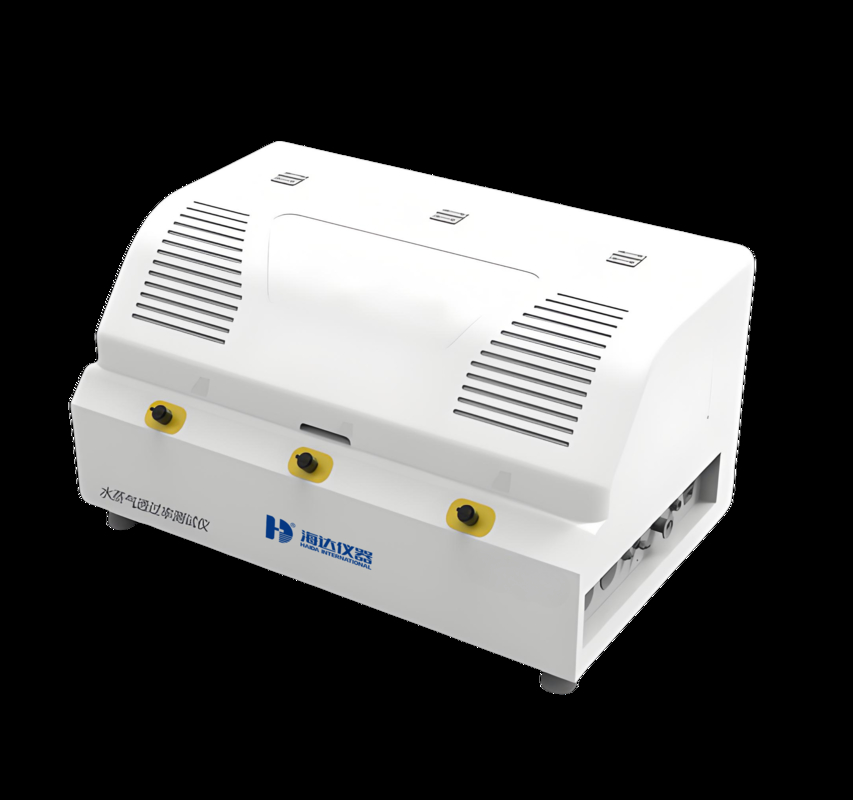

Infrared Water Vapor Permeability Tester for Packaging Materials 2
