5085-HD Dart Impact Tester for Paper Packaging ASTM D1709

5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709 5085-HD Dart Impact Tester for Paper Packaging ASTM D1709 5085-HD Dart Impact Tester for Paper Packaging ASTM D1709 5085-HD Dart Impact Tester for Paper Packaging ASTM D1709

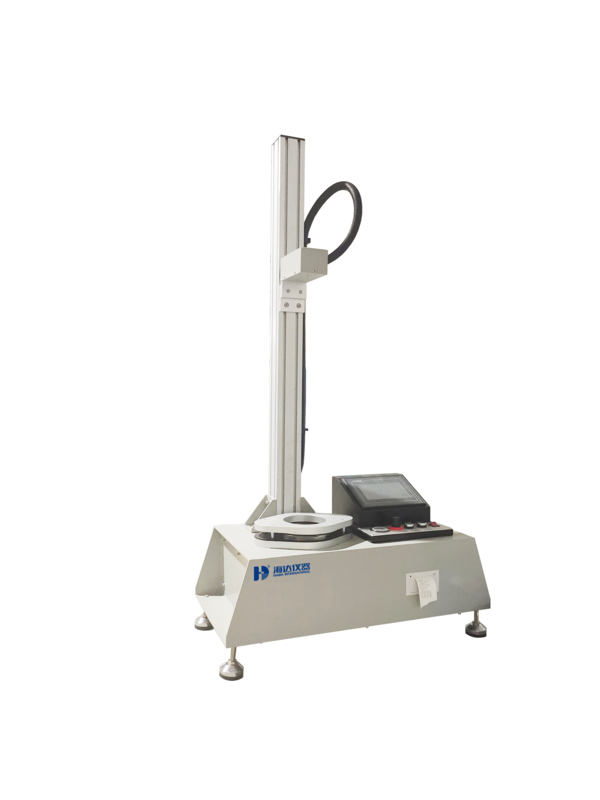

Büyük resim :  5085-HD Dart Impact Tester for Paper Packaging ASTM D1709

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Haida
Sertifika: CE、ISO
Model numarası: 5085-HD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: Anlaşılabilir
Ambalaj bilgileri: reçine elyafı ve PP film ile korunan her set, daha sonra operasyon görevlisi ile Güçlü tahta sandık
Teslim süresi: Sipariş onaylandıktan 20 gün sonra
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: Ayda 300 set

5085-HD Dart Impact Tester for Paper Packaging ASTM D1709

Açıklama
İşlev: Sıkıştırma testi, kağıt tüp sıkıştırma mukavemeti testi, patlama test cihazı, gerilme testi, kağıt t İsim: Kağıt Kupa Tüp Bırakma Mukavemeti Test Cihazı, Kağıt Test Aleti Kağıt GSM Test Cihazı/ Patlama Mukav
Görüntülemek: LCD, dijital ekran Birimler anahtarı: KGF, n. (İsteğe bağlı), LBF
Ekran modu: LCD ekran, dijital mod Tasarım kriterleri: ISO 2248, JIS Z0202-87
Test hızı: 3 ± 1mm/dakika standart: Bs en Is) 8442: -5: 2
Çarpma hızı hatası: ≤±5% Hareket sürüşü: top vidası ve servo motor
Garanti: 1 yıl Kullanmak: Ambalaj kapları
nokta boyutu: 8x20mm İsteğe Bağlı Yapılandırma: Yazıcı, Hava Pompası
Kuvvet Doğruluğu: ≤±1 Durmak: Testi Durdur
Beygir gücü: 1/2 HP Yük çözünürlüğü: 1/100.000
Test Nem Aralığı: 0 ~% 50 Test Standartları: ISO 534, ISO 3034
Vurgulamak:

ASTM Dart Impact Tester

,

Paper Packaging Dart Impact Tester

,

Dart Impact Tester

5085-HD DART IMPACT TESTER EQUIPMENT DETAILS
Key Functions
  • Compression testing
  • Paper tube compressive strength testing
  • Burst strength testing
  • Tensile testing
  • Comprehensive paper testing instrument
Technical Specifications
Display Type LCD, Digital display
Units Switch Kgf, N. (Optional), Lbf
Testing Speed 10 ~ 200 mm/min
Dimensions 360*264*400mm, 70*34*60cm, 85*65*80cm
Measuring Range 250-5600 Kpa, 10 ~ 1000mN
Design Standards ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87
Applications

The Fall Dart Impact Testing Machine evaluates impact resistance of plastic films and slices, compliant with ASTM D1709 standards.

General Specifications
Packaging Dimensions 1020*600*2250mm (L×W×H)
Gross Weight 130kg
Power Supply Single-phase, 220V±10%, 50/60Hz (customizable)
Standard Features
Testing Sample Mass Method A: 50-2000g; Method B: 300-2000g
Testing Accuracy 0.1g (0.1J)
Testing Methods Method A & Method B (Option)
Specimen Size >150mm×150mm
Impacting Head Diameter Method A: Ф38.1±0.1mm, Method B: Ф50.8±0.1mm
Dart Shaft Diameter Ф6.5±0.1mm
Specimen Fixture Inner Diameter 125±2 mm
Impacting Height Method A: 0-660mm, Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2
Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic
About Haida

Haida products serve diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
